2.5D角聯鎖結構系列   Interlock structure

正交三向結構系列     Orthogonal Structure

3D機織物為各向異性材料，易實現復雜結構件的仿形織造，可設計性強。根據復合材料各方向的力學性能要求，靈活設計經緯紗線的含量，滿足產品的力學性能。同時根據產品后期的工藝要求，可調整織物的剛性，使其適應不同復合材料的制備工藝和服役要求。

The 3D woven preforms is an anisotropic material, which is easy to reach the near-net shape weaving of complex structural parts and has strong designability. According to the mechanical properties of the composite material in all directions, the content of warp and weft yarn is flexibly designed to meet the mechanical properties of the product. At the same time, according to the process requirements in the later stage of the product, the rigidity of the fabric can be adjusted to adapt to the preparation process and service requirements of different composite materials.

2.5 D 結構系列

3D Structure Series

可實現 — 高厚2.5D平板織物的自動化織造。

Achievable—Automative weaving of high thickness 3D plate preforms

可實現 — 變截面仿形織物的自動化織造。

Achievable—Automatic weaving of near-net shape preforms with variable section

可實現 — 封頂整體仿形織物的低成本織造。

Achievable—Low cost weaving of capped integral near-net shape preforms

應用優勢：具有更好的耐燒蝕性能，具有更好的層間性能。

Application advantage: Better ablative resistance , better interlayer performance.

產品名稱

厚度

幅寬

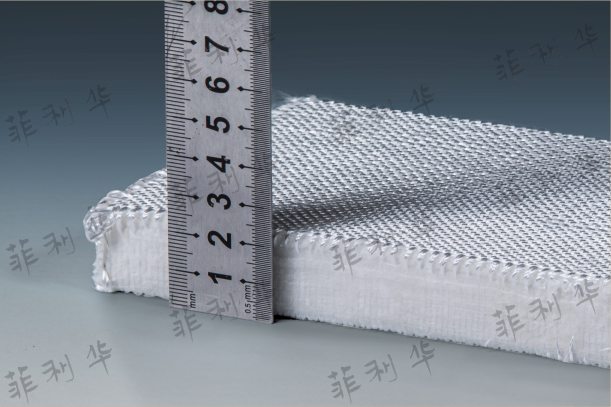

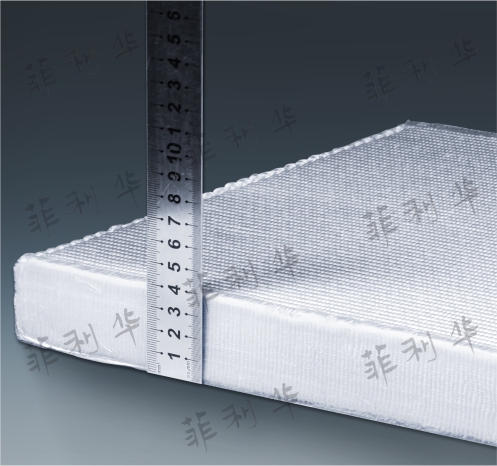

2.5D高厚平板系列產品

1-90

100-1300

2.5D仿形系列產品

2.5D罩體系列、3D殼體系列等

正交三向結構系列

Orthogonal Structure

可實現 — 80mm以內高密細紗纖維正交三向織物的織造。

Achievable—Low linear density yarn(≤80mm)，orthogonal structure.

可實現 — 150mm以內粗紗纖維正交三向織物的織造。

Achievable—High linear density yarn(≤150mm)，orthogonal structure.

三維紡織預制件系列主要用途：Main Application:

 · 熱防護系統：發動機噴管，飛行器頭錐、翼前緣及發動機熱端部位。
 · 透波系統：天線窗等。

Wave-transparent System: Antenna Window, etc. Thermal Protection System: Engine nozzles, Nose Cone and Wing of Vehicle, Aeroengine Hot Components.

蜂窩結構系列

Honeycomb Structure Series

可實現 — 蜂窩織物自動化織造。

Achievable—Automated weaving of honeycomb fabric.

可實現 — 矩形、六邊形、梯形結構蜂。

Achievable—Rectangle、Hexagon、Trapezoidal structure honeycomb.

應用優勢：Application advantage:

可設計性強，輕量化結構，適應于?溫透波、?精度隔熱等極端環境。

High design flexibility，Lightweight structure，suitable for extreme environments such as hightemperature wave transmission and highprecision thermal insulation.

蜂窩單元邊長
Side length of honeycomb cell

蜂窩單元壁厚
Thickness of Honeycomb cell

幅寬
Width

可定制 Customizable

0.03-4

≤700
